LED Backlight LCD

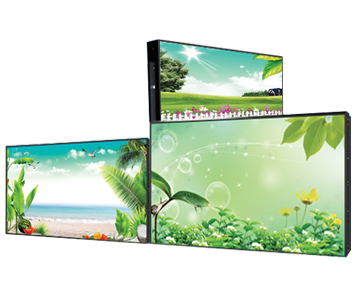

46"Super Narrow Bezel LCD Display Unit

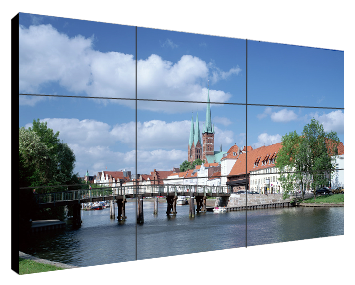

The products use DID (Digital Information Display), a new technology of LCD display system from Samsung. Compared with ordinary LCD technology, DID improves the structure of liquid crystal molecules with high brightness, high definition and long life-span. When the units are horizontally and vertically spliced into a whole screen, Triolion LCD video wall would provide an ultra-high resolution (1920*M*1080*N) for customers with larger LCD display image.
- Overview
- Specifications
- Features
- Interface
- Unlike front projection, tiled LCDs require less maintenance costs, have a better contrast ratio and are not influenced by ambient light.
- Unlike plasma technology, tiled LCDs require less power consumption and are not subject to permanent, irreversible burn-in.
- Unlike normal-bezel LCD displays, tiled LCDs offer more scalability, minimize bezel distraction and allow optimal usability of the screen surface with high resolution.
- Unlike lamp-based LCD displays, tiled LCDs with LED backlights offer more brightness, optimal image quality and a high life expectancy.
| LCD Module |
Diagonal Size |
46" |
| Backlight Source |
LED |
| Size(W×H×D) |
1023.98×578.57×125mm |
| Image Area |
1018.08×572.67mm |
| Viewing Angle |
178º(H/V) |
| Native Resolution |
1920×1080(FHD) |
| Brightness |
500cd/m2 or 700cd/m2 |
| Contrast Ratio |
3500:1 |
| Power |
AC Voltage |
AC 200-240V,50/60Hz,2.0A |
| Maximum Consumption |
350W |
| Working Consumption |
140W or 160W |
| Wstand-by power consumption |
≤2W |
| Bezel |
Bezel Width |
3.7mm(U/L),1.8mm(R/B) |

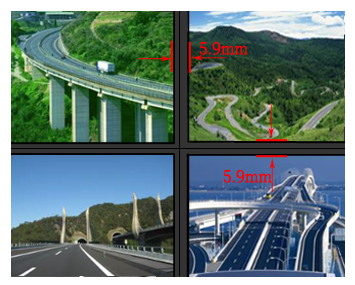

| Optical GAP |
5.9mm |
| Color |
Black |
| Net Weight |
30kg |
| Working Conditions |
Temperature |
0-50ºC |
| Humidity |
20%-90%(Non-Condensing) |
| Computer Input/Output |
Simulation |
VGA(D-Sub15) |
| Digital |
DVI(DVI-I) |
| HD |
HDMI(HDMI A) |
| Working Resolution |
640×480@60Hz~1920×1080@60Hz |
| AV Input/Output |
Input |
CVBS(BNC)×4 |
S-VIDEO(mini-DIN) |
| Output |
CVBS(BNC) |
| Video Standard |
CVBS/S-VIDEO: PAL/NTSC/SECAM |
| Control Input/Output |
Input |
RS-232C(RJ45) |
| Output |
RS-232C(RJ45) |
